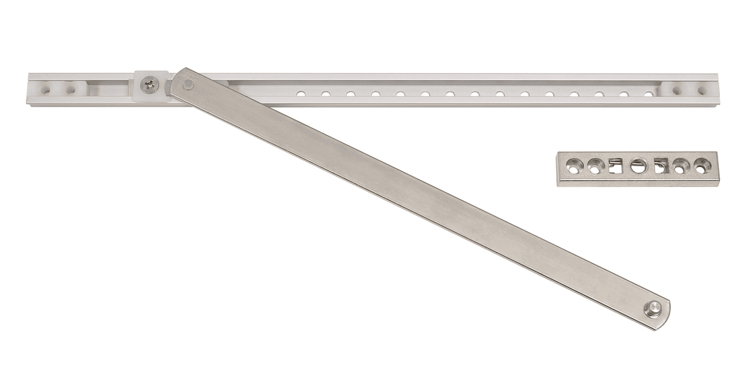

The Z130 concealed door stay has a 16mm x 330mm long track and is specifically manufactured for recessing into the standard euro groove profile at the top of the UPVC door in the head rail..

The euro groove is an industry standard feature of UPVC door sectional profiles typically, conservatory doors, patio doors, french doors and front doors of your home. The groove can also be featured on some aluminium and timber door profiles. This is the groove that’s located in the door edge where multi-point locks, espagnolette bolts and door stays are fitted. (It is always 16mm for PVCu/UPVC), (but can be 20mm in timber so please check this to ensure that the Z130 is compatible.)

The Z130 suits either hand of door and both inward or outward opening doors, so is non-handed and a universal fit. It has an opening angle of up to 125 degrees which is adjustable. The channel has multiple fixing holes to locate the nylon end stop, which allows smaller opening angles to be set if required. When the door is in the closed position the door restrictor is totally concealed between the head of the door and head of the door frame. When the door is open, only the arm and head frame plate are visible.

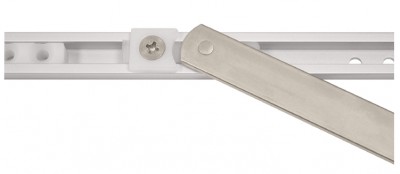

It has an aluminium channel track, stainless steel arm and zinc alloy head frame plate so it is suitable for external use. It has an adjustable stop position to limit the opening angle of the door which will prevent the door swinging too far,causing damage to the door, frame and property. Friction is applied and is also adjustable by easily turning an adjusting screw in the sliding nylon block. This will assist the door when resistance is necessary to prevent the door from being flung open under force or from wind force. Never-the-less, the limiting block within the door saty track will be in place to stop the door at the set opening cycle degree. (Do not over-tighten the friction adjustment screw as this will result in damage to the door and restrictor.)

Dispatched within 24hrs for next day delivery

• Door stay for UPVC / PVCu doors.
• Fits most UPVC doors.
• Fits some timber and aluminium doors.
• Satin stainless steel and satin aluminium finish.
• Adjustable friction settings.
• Adjustable limiting stay degree settings.
• A very reliable door limiting stay.
• Specifically made for the job.
• Fixings supplied.
• Track size: 16 x 330mm.
• Fits into a groove that is already machined into your door.
• Internal and external use.
• If your PVCu door does not have one, be safe, fit this device.
• Helps prevent damage to your door & frame.
