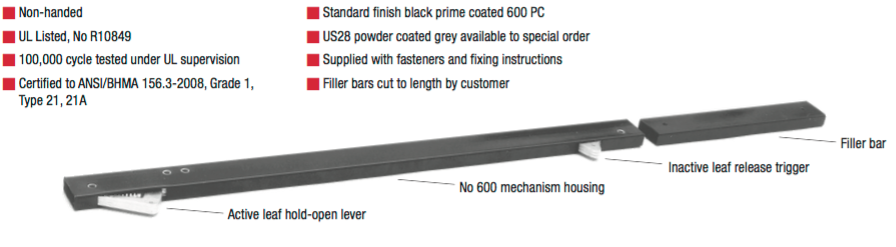

The Z600 series double door selector is different to our other door selectors as the device is mounted on ther unside of the head of the door frame. There are extra components that can be purchased to suit different door types, ie: rebated timber doors are different to flat astragal aluminium and steel doors, so "filler bar" is fitted to add to the length of the device (see data link at bottom of page). They work great and are an internal application. This device is only available in a matt black powdercoated finish. The Z600 door selector is rated as tamper-proof, vandal resistant and accident resistant. This is a very reliable double door door co-ordinator that is favoured by installers and manufacturers due to it's aesthetic design and internal positioning. This device is compatible with any rebated meeting stile, non-rebated meeting stile and astragal double door set.

Dispatched within 24hrs for next day delivery

• Double door co-ordinator
• Matt black powdercoated finish
• Internal application
• Vandal resistant & tamper-proof
• Made in the USA
• Made from aluminium & steel components
• Non-handed & fixings supplied.
• Filler bar cut to length by customer
• Tested to 100,000 operating cycles
• UL listed, No. R10849
• ANSI/BHMA 156.3-2008, Grade 1, Type 21, 21A
• Non CE marked
• Device body as standard is 40mm deep x 13mm thick
• Can be used on frame openings 864mm to 3048mm
• For doors with nastragal/rebate no greater than 25mm
• Underside of frame head/slamming stop to be min 32mm
• After purchasing, we will check you have the order correct.

Please use the link below to view the data file for the product:

http://zeroplus.co.uk/wp-content/uploads/2014/05/Zero-18-126.pdf
